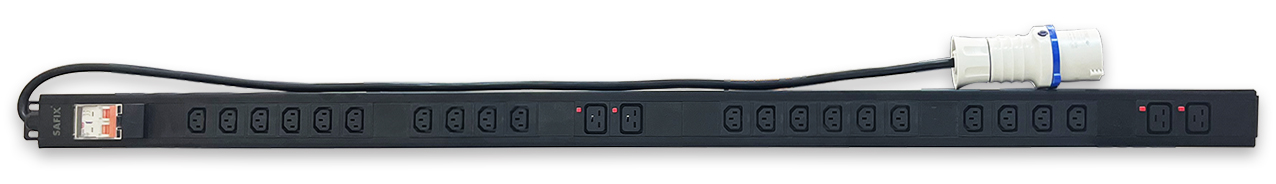

PDU-3224B-C13C19
Basic / 0U / PDU 20 x IEC C13, 4 x IEC C19 Outlets
Output
Nominal Output Voltage: 250V
Maximum total current draw for each stage: 32A
Output connections: 20 x IEC C13, 4 x IEC C19 Outlets
Input
Nominal Input Voltage: 220 – 250V
Input Frequency: 50 – 60 HZ
Input Connection: IEC 60309 2P+E 32A
Cord size and length: 3C X 4MM / 1.8M / 3M / 5M
Maximum input current per phase: 32A
Number of power wires: 1
Payload: 8000 W
Overload protection
Protection Type: MCB 2P 32A
Physical
Body Type: Aluminum (1.5U)
Maximum Height: 1410 MM
Maximum Width 49 MM
Maximum Depth: 84 MM
Color: Black
Mount Type: Non Rotatable Metal Hanger
Features
Master Switch: MCB
Fire Resistance: YES
Environmental:
Operating Temperature: 0-45 Deg
Storage Temperature: -25 Deg – 65 Deg
Operating Relative Humidity: 0-95%
Conformance:
Standard Warranty: 5 Years
Standards
Standards: IEC 60309 / IEC 60320
Country of Origin
SAUDI ARABIA 🇸🇦
HS Code: 853710
Certifications
Certifications: CE / SAUDI MADE
