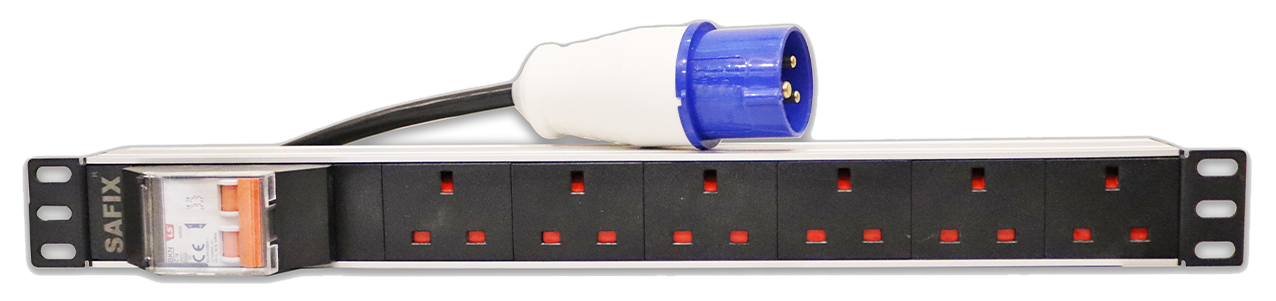

PDU-1606B-UK
Basic PDU / 19″ / 6 Way UK
Output
Nominal Output Voltage: 250V
Maximum total current draw for each stage: 16A
Output connections: 6 x UK Outlets
Input
Nominal Input Voltage: 220 – 250V
Input Frequency: 50 – 60 HZ
Input Connection: IEC 60309 2P+E 16A
Cord size and length: 3C X 2.5MM / 1.8M / 3M / 5M
Maximum input current per phase: 16A
Number of power wires: 1
Payload: 4000 W
Overload protection
Protection Type: MCB 2P 16A
Physical
Body Type: Aluminum (1U)
Maximum Height: 482 MM
Maximum Width 49 MM
Maximum Depth: 84 MM
Color: Anodized Silver and Black
Mount Type: Non Rotatable Metal Hanger
Features
Master Switch: MCB
Fire Resistance: YES
Environmental:
Operating Temperature: 0-45 Deg
Storage Temperature: -25 Deg – 65 Deg
Operating Relative Humidity: 0-95%
Conformance:
Standard Warranty: 5 Years
Standards
Standards: IEC 60309 / IEC 60320
Country of Origin
SAUDI ARABIA 🇸🇦
HS Code: 853710
Certifications
Certifications: CE / SAUDI MADE
