Metered PDU

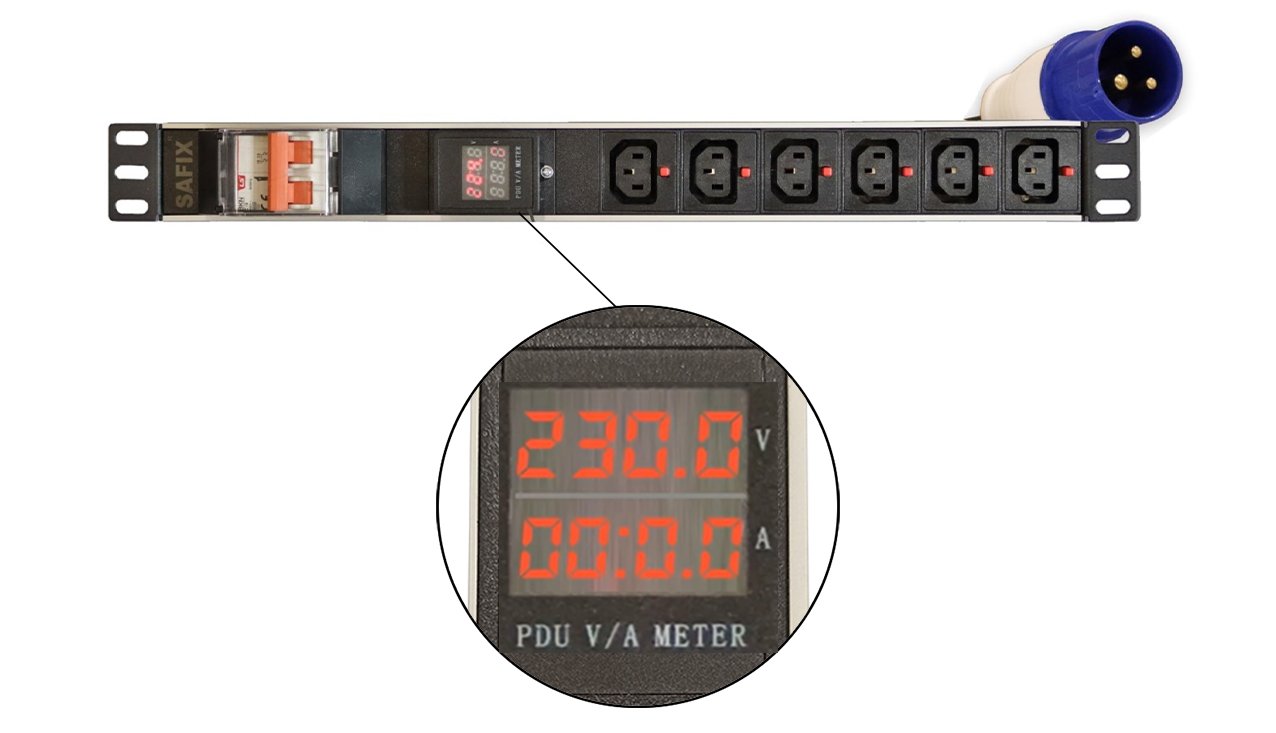

V/A Metered PDU
Output
Nominal Output Voltage: 250V
Maximum total current draw for each stage: 63A
Output connections: Max Number of Outputs Based on Customer Requirements
Input
Nominal Input Voltage: 220 – 250V
Input Frequency: 50 – 60 HZ
Input Connection: Any STD
Cord size and length: 3C X 2.5MM / 4MM / 1.8M / 3M / 5M
Maximum input current per phase: 16A / 32A
Number of power wires: 1
Payload: 8000W
Overload protection
Protection Type: As Per Customer Requirements
Physical
Body Type: Plastic / Aluminum
Maximum Height: NA
Maximum Width: 62 MM
Maximum Depth: 84 MM
Color: Black
Mount Type: NA
Features
Master Switch: NA
Fire Resistance: YES
Environmental:
Operating Temperature: 0-45 Deg
Storage Temperature: -25 Deg – 65 Deg
Operating Relative Humidity: 0-95%
Conformance:
Standard Warranty: 5 Years
Standards
Standards: EMC / LVD
Country of Origin
SAUDI ARABIA 🇸🇦
HS Code: 853710
Certifications
Certifications: CE / SAUDI MADE
